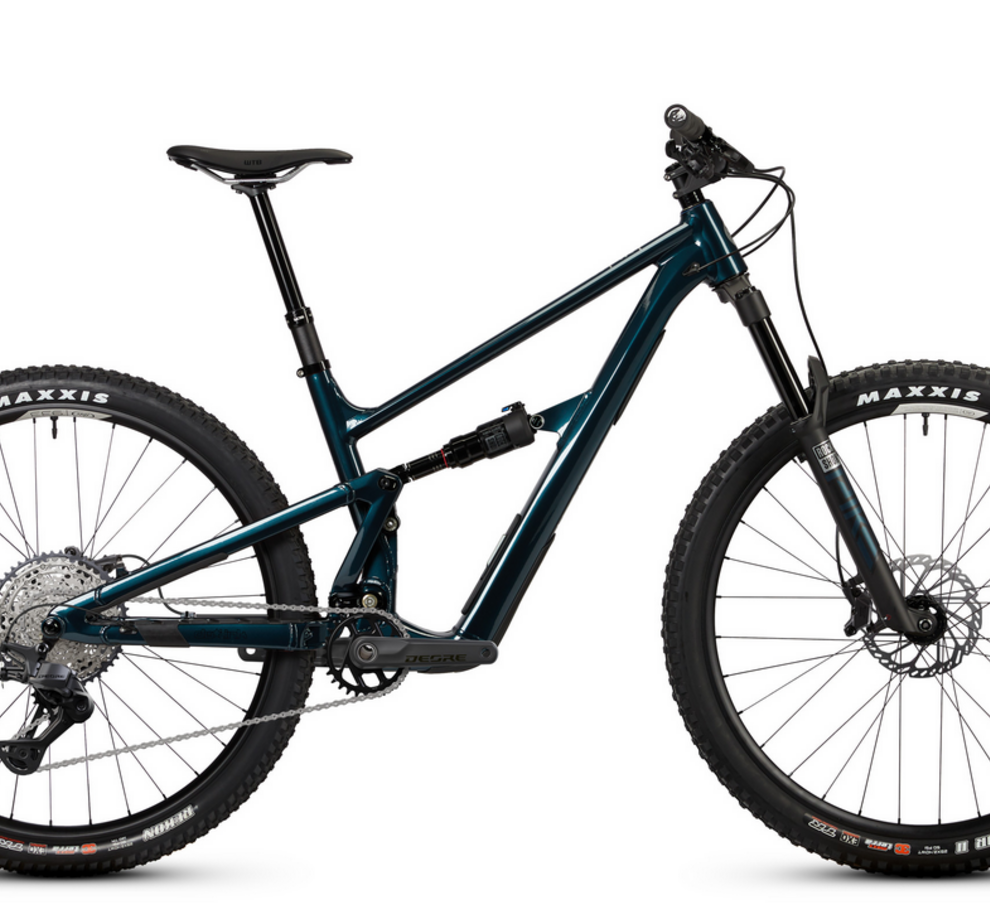

Ripley AF Deore Blue Large
Perfect for both seasoned shredders and stoked newcomers, the newest AF version packs the same fast, playful feel the Ripley is known for — into a tough aluminum package that’s ready for anything.
Available in store
Close| Nominal Size | SM | MD | XM | LG | XL | |
|---|---|---|---|---|---|---|
| Seat Tube | A | 395 | 400 | 415 | 457 | 477 |
| Top Tube | B | 577 | 604 | 629 | 654 | 684 |
| Head Tube | C | 85 | 95 | 110 | 125 | 140 |
| Chainstay 29" | D | 436 | 436 | 437 | 440 | 442 |
| Seat Tube Angle | E | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
| Saddle Height for Seat Tube Angle | F | 650 | 700 | 745 | 790 | 830 |
| Head Tube Angle | G | 64.9° | 64.9° | 64.9° | 64.9° | 64.9° |
| Wheelbase | H | 1187 | 1211 | 1241 | 1279 | 1321 |
| Stack | I | 613 | 619 | 629 | 640 | 650 |
| Reach | J | 440 | 460 | 483 | 511 | 545 |
| BB Height* | 326 | 329 | 332 | 335 | 338 | |
| BB Drop | K | 48 | 45 | 42 | 39 | 36 |
| Standover | L | 680 | 721 | 744 | 759 | 772 |
| Recommended Seatpost Drop | 140 | 170 | 185 | 213 | 213 | |
| Crank Length | 165 | 165 | 170 | 170 | 170 | |
| Tire Size | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | |
| Water Bottle Size | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
*With Maxxis 29x2.4 WT tires = 748mm diameter, 27.5x2.5 WT rear tires = 708mm diameter.
