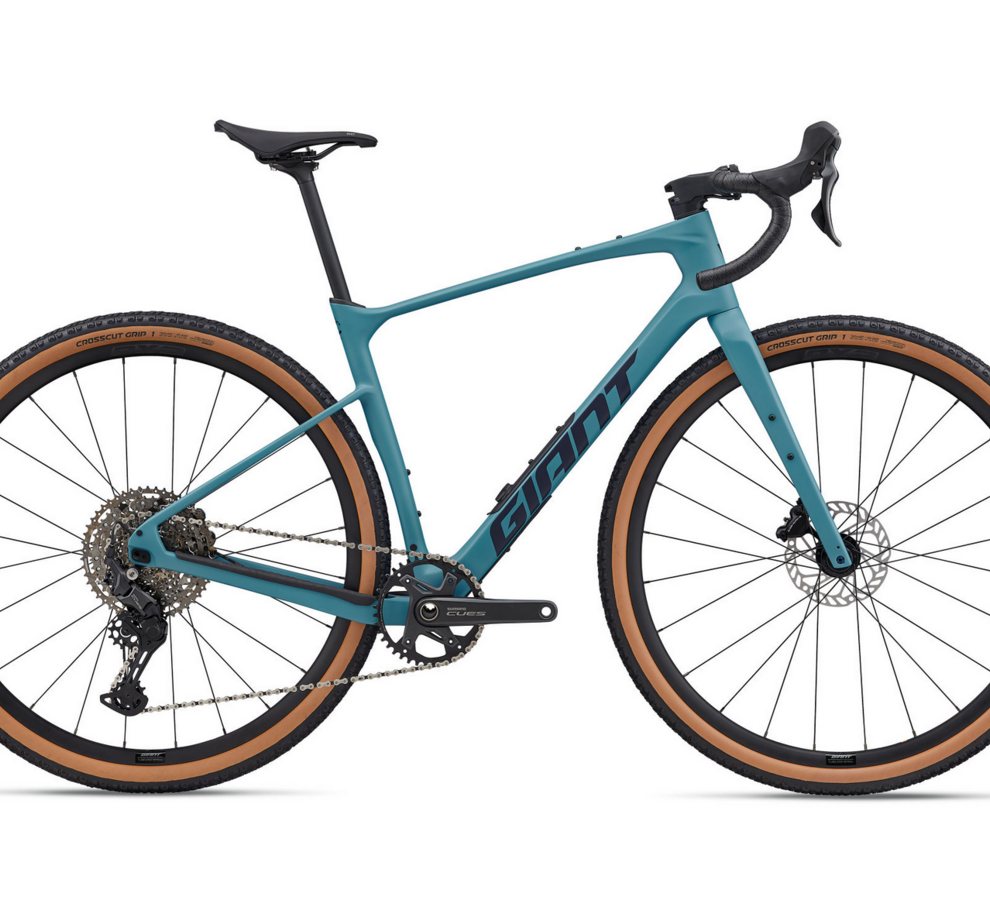

Revolt Advanced 3 Aquarium Small
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Available in store
CloseFast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm.
-
FrameAdvanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
-
ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
-
HandlebarGiant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
-
StemGiant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
-
SeatpostGiant D-Fuse, composite, 14mm offset
-
SaddleGiant Grit
-
ShiftersShimano CUES U6030, 1x11
-
Front DerailleurN/A
-
Rear DerailleurShimano CUES U6000
-
BrakesShimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
-
Brake LeversShimano CUES U6030 hydraulic
-
CassetteShimano CS-LG400, 11x50
-
ChainKMC X11
-
CranksetShimano FC-U6030-1, 42t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
-
Bottom BracketShimano, press fit
-
RimsGiant P-X2 , alloy
-
HubsGiant alloy, 12mm thru-axle
-
SpokesSapim
-
TiresGiant Crosscut Grip, 700x45c, tubeless
-
Extrastubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
-
Max Tire Clearance53mm
